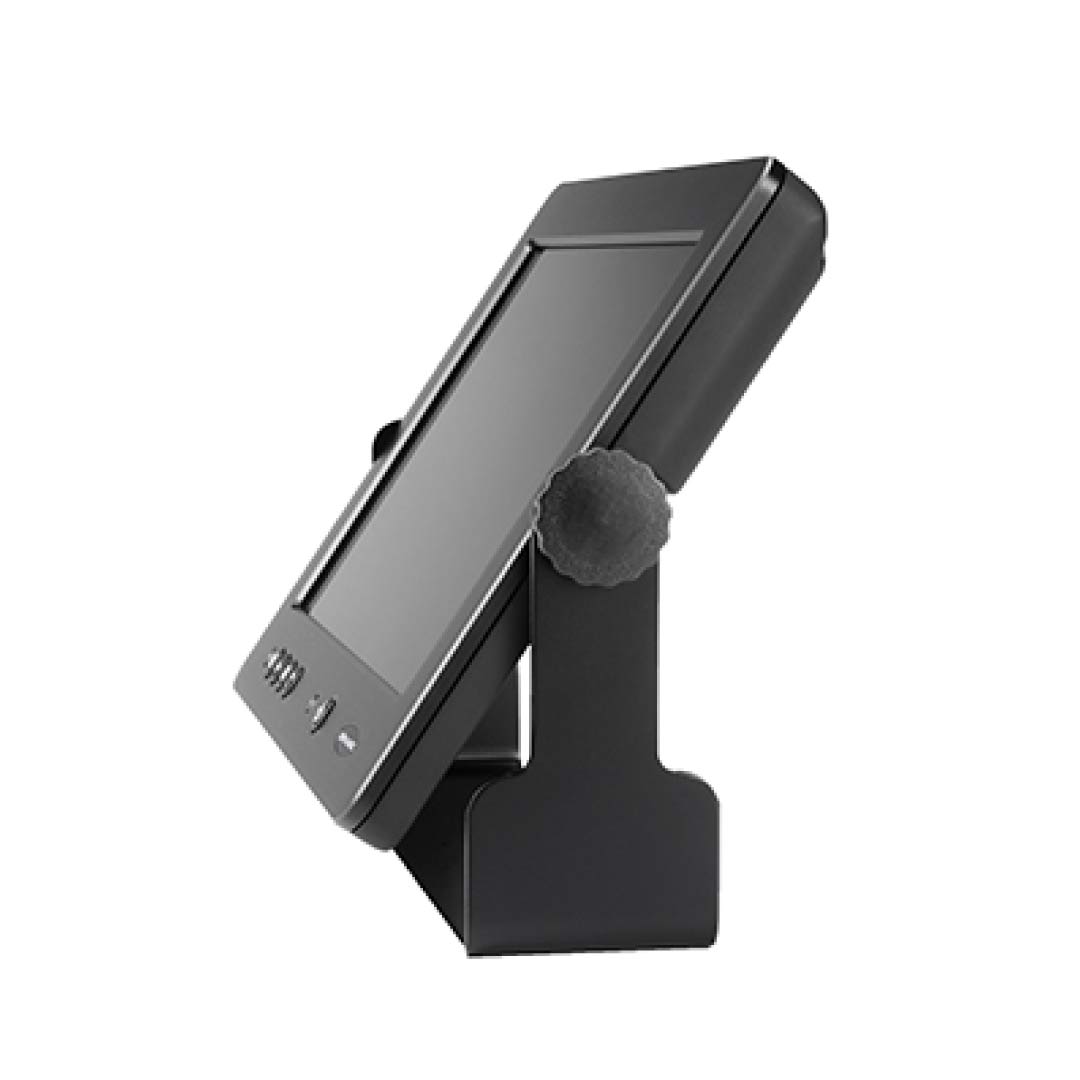

10.1″ tööstuslik ekraan

Description

With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 500:1. Sunlight readability is further enhanced by its advanced Anti-Reflective coating. This latest product in the 10.1 industrial display monitor line offers superior readability under sunlight. With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 500:1. Sunlight readability is further enhanced by its advanced Anti-Reflective coating.

• Screen Size: Diagonal 10.1″ (16:9)
• Physical Resolution: 1024 (H) x 600 (V) WXGA
• Supported Resolution: 640 x 480 ~ 1920 x 1080
• Dot Resolution: 3072 x 600 = 1,843,200 (dots)
• Brightness: 1000 cd/m²
• Contrast Ratio: 600:1
• Viewing Angle: 140° Horizontal, 120° Vertical
• Response Time (Tr/Tf): 5/20ms (Typ.)
• Operating Voltage Range: DC 9V ~ 36V
• Power Supply: DC 12V
• Power Consumption: ? 20W
• Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
• Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
• Vibration: Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard
• Shock: Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 265W x 186H x 33.2D
• Weight (lb): 3.3
