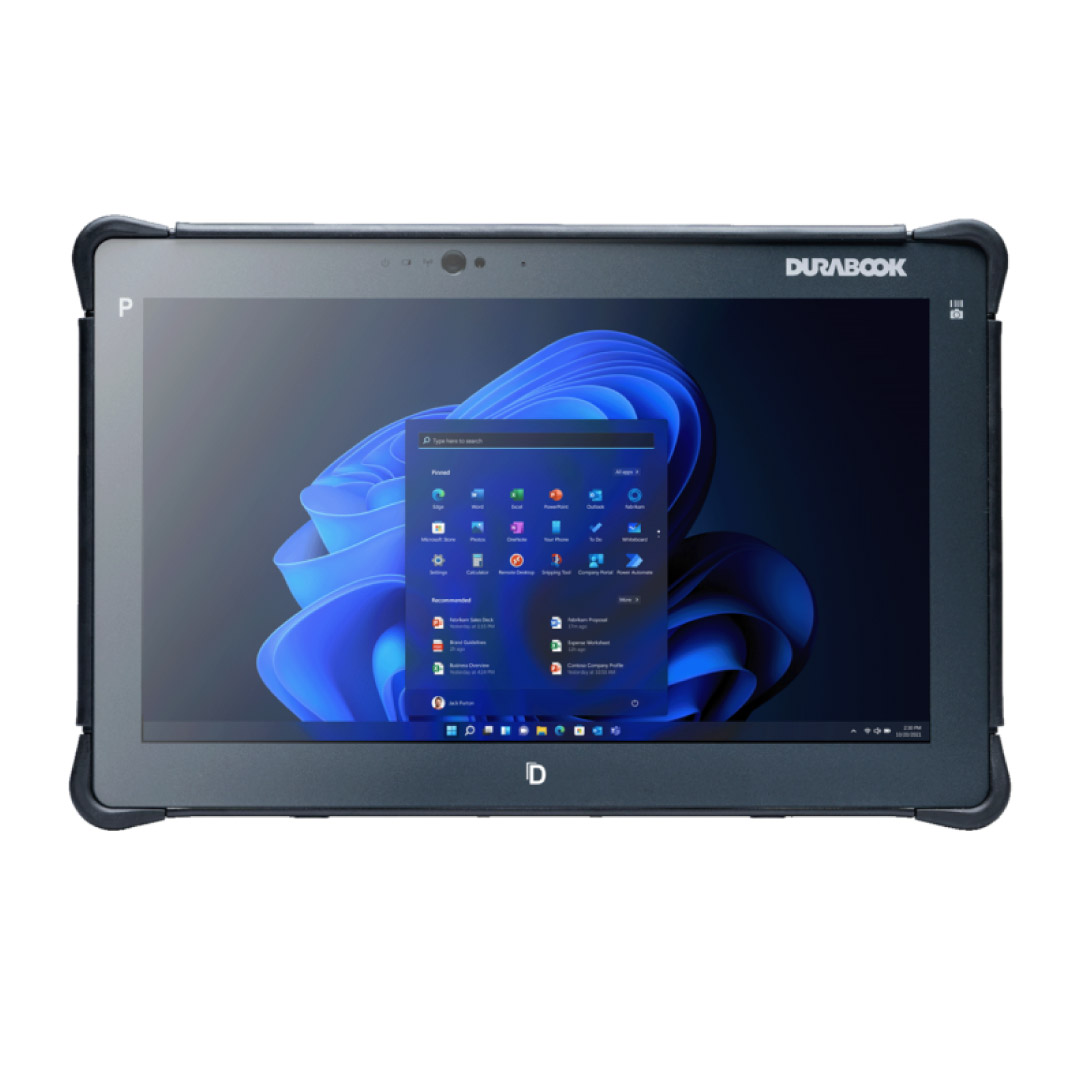

Durabook R11

Kirjeldus

Designed for the harshest environments, the R11 is the world’s most compact 11.6” tablet in the fully-rugged class, weighing only 1.2kg (2.65lb) and measuring just 20mm (0.79″) thick. Its smooth, streamlined exterior and neat form complement its tough image, guaranteeing optimum operational performance in every situation.

Featuring 12th Gen Intel® Core™ processor, a IP66 design and 4-feet drop protection, it is engineered to offer the best blend of functionality, performance and reliability for maximized efficiency of today’s professional workforce.

ENTERPRISE-CLASS PERFORMANCE

The R11 offers the latest Intel® 12th Generation processors with Intel® Iris® Xe graphics, delivering outstanding performance and visuals via its neat, compact form.

Plus, the high-speed data transmission capability of Thunderbolt™ 4, Intel® Wi-Fi 6E and Bluetooth® V5.3 provides smooth, congestion-free processing at all times.
THIN, LIGHT AND STREAMLINED
Thin and lightweight, the R11 is only 20mm (0.79″) thick and just 1.2kg (2.65lb), making it the world’s most compact tablet in the fully-rugged class.

In addition, the R11’s smooth, streamlined exterior complements its rugged image for extra appeal.

SHARP INSIDE AND OUT

When your office includes rain, cold, bright sunlight and other environmental challenges, you need a device that’s built for purpose. The R11 features an 11.6” FHD (1920 x 1080) LCD with Durabook’s proprietary DynaVue® technology up to 1,000 nits for exceptional viewing even in direct sunlight. The R11 has also a 10-point capacitive multi-touch panel with four advanced touch modes, including stylus and glove regardless of work conditions.

VERSATILE DATA CAPTURE

The R11 features numerous integrated data-capture modules for multiple ways to retrieve and transmit information on the move. Optional add-ons include a barcode reader, RFID reader, serial port and RJ-45 port.

A 2MP front camera, 8MP rear camera, Wi-Fi 6E and Bluetooth® V5.3 also come as standard on this versatile tablet.

ROCK-SOLID DESIGN

The robust design of the R11 tablet equips field operatives with the confidence to do their jobs in even the harshest environments and temperatures.

Drop-tested from 4 feet, MIL-STD-810H and MIL-STD-461F certified, optional ANSI C1D2 certified and with an IP66 rating for maximum protection against dust, dirt, and water ingress, the R11 is trusted to perform.

POWER FOR THE LONG HAUL

Sustained battery power is critical for ensuring professional operatives remain productive in the field. That’s why the R11 offers an optional high-capacity battery lasting up to 14 hours without a charge.

R11 RUGGED TABLET ANATOMY

Specifications

• MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
• MIL-STD-461F certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
• ANSI/UL 121201, Class I, Division 2
• 4′ drop 26 faces
• IP 66 certified
• Aluminum-magnesium alloy chassis
• Port covers
• Optional sunlight readable display

Rugged Specs

• MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
• MIL-STD-461F certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
• ANSI/UL 121201, Class I, Division 2
• 4′ drop 26 faces
• IP 66 certified
• Aluminum-magnesium alloy chassis
• Port covers
• Optional sunlight readable display

Tech SpecsDisplay

• 11.6” FHD (1920 x 1080)
• 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
• User selectable touch mode for Finger/Water, Glove, or Stylus programmable function

Operating System

• Windows® 11 Pro 64-bit
• Processor Intel® Core™ i5-1235U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores)
• Memory 1 slot of 8GB up to 32GB (4800MHz DDR5)
• Storage 256GB NVMe PCIe SSD
• Graphics Intel® Iris® Xe Graphics

Camera

• Integrated 2.0 MP front-facing camera
• 8.0 MP auto-focus rear camera with flash

Audio

• Integrated microphone
• Intel® High Definition Audio Compliant
• Integrated speaker x 1

Keyboard & Input

• 6 buttons (2 user-definable keys)

I/O Ports

• Thunderbolt 4 x 1
• USB 3.2 Gen2 (type A) x 1
• Micro HDMI x 1
• Audio in/out (combo jack) x 1
• microSD card (microSDXC) x 1
• Docking connector (35-pin Pogo) x 1
• Nano SIM card x 1
• DC-In jack x 1

Wireless & Communications

• Intel® Wi-Fi 6E AX211 (802.11 ax)
• Bluetooth® V5.3
• GPS and 4G LTE multi-carrier mobile broadband1

Security

• Intel® vPro™ Technology
• TPM 2.0
• NIST BIOS compliant
• Stealth mode
• Kensington lock
• Smart card reader

Power

• AC adapter : 100-240V, 50Hz-60Hz, 65W
• Long life battery Li-Ion 11.1V, 6900mAh, 15 hours3

Dimension & Weight

• 299 mm (L) x 192 mm (W) x 20 mm (H)
• 1.2 kg
