Durabook Z14I Rugged Laptop

Kirjeldus

Combined with the latest 11th Generation Intel® Core™ processor and Iris® Xe graphics capabilities, the Z14I rugged laptop can handle data intensive tasks at speed. It has been built to withstand even the harshest of environments. Its IP65 rating, protecting against dust and water ingress, MIL-STD 810H certification and resistance up to six feet drop make the Z14I more rugged than other comparable devices on the market. The device has also been tested for explosive atmosphere, solar radiation, salt fog, and fungus resistance, which goes beyond testing standards compared to other rugged devices in its class.

The Z14I includes Durabook’s proprietary DynaVue® technology and high-definition multi-touch screen, offering the highest contrast ratio, which helps to eliminate internal reflections that enhance viewing clarity even from different angles, and in bright sunshine or low light conditions.

Enhanced performance

Z14I is equipped with Intel® 11th generation CPU featuring Iris® Xe graphics processor, and performance is enhanced to cater for congested data processing. With an ultra high-speed data transmitting capability of Intel® Wi-Fi 6 and Bluetooth® V5.2, all data can be instantly synchronized and fed back to the data center without any interruptions.

Built for all enviroments

With invincible mechanical design and rigorous component selection, the Z14I can adapt to any environments flawlessly. It is MIL-STD-810H certified with additional items such as explosive atmosphere, solar radiation, salt fog, and fungus resistance; it is also certified for IP 65 and a 6 feet drop guarantee. What’s more is that it has MIL-STD-461G and ANSI-C1D2 certifications which makes it more rugged than ever.

Comprehensively customized

A smart device that offers you different types of interfaces with various selections of add-ons, which includes Thunderbolt™ 4, two RJ-45 ports, two RS-232 serial ports, ExpressCard 54 or PCMCIA Type II slot. In addition, USB options offer all capabilities of Type-C to Type-A, or USB 3.2 Gen2 to USB 2.0.

For some customers, specific needs can be catered by our flexible customization package upon purchase.

Viewing at its best

The 14-inch Full HD 1080p widescreen display alone with DynaVue® technology reveals every detail of visual image at a glance. Not only it has the brightness of up to 1000 nits but also the light-filtering technology makes the Z14I the best rugged laptop with highest contrast ratio (CR), which helps to eliminate internal reflections that enhances viewing clarity when viewed at different angles.

Optimized touch technology

The 10-point capacitive multi-touch panel has four touch modes (Glove, Stylus, Water, Finger), this device is optimized for applications of both indoor and outdoor usage; enhancing the device’s usability regardless of work conditions.

Storage revolution

Z14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III. It can accommodate two more internal SATA III SSD drives to maximize the onboard storage.

In addition, the Z14I device provides a media bay for several setup options; such as, an optical disk drive, a second battery or a third SATA III SSD storage to select from.

Specifications

Rugged Specs

• MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance)
• MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
• ANSI/ISA 12.12.01-2000, Class I, Division 2
• 6′ drop 26 faces
• IP 65 certified
• Aluminum-magnesium alloy chassis
• Port covers
• Removable quick-release battery and storage drive
• Sunlight readable display
• Optional swappable battery technology

Tech Specs

Display

• 14.0” FHD (1920 x1080)
• 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
• User selectable touch mode for Finger/Water, Glove, or Stylus programmable function

Operating System

• Windows® 10 Pro 64-bit

Processors

• Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
• Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
• Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
• Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache

Memory

• 2 slots 8GB up to 64GB (3200MHz DDR4)
• Main: 256GB/512GB/1TB NVME PCIE SSD

Storage

• Optional 256GB/512GB/1TB SATA SSD
• Optional OPAL 2.0 SSD
• Optional 2nd/3rd storage (SATA SSD)1

Graphics

• Intel® Iris® Xe Graphics
• Optional NVIDIA® GEFORCE GTX 10501

Camera

• Integrated 2.0 MP web-cam with shutter design
• Optional IR camera for Windows Hello1

Audio

• Integrated microphone
• Intel® High Definition Audio Compliant
• Integrated speaker x 2
• Keyboard volume and mute controls

Media Bay (One Option Only)

• Optional DVD super Multi
• Optional 2nd battery
• Optional SATA SSD

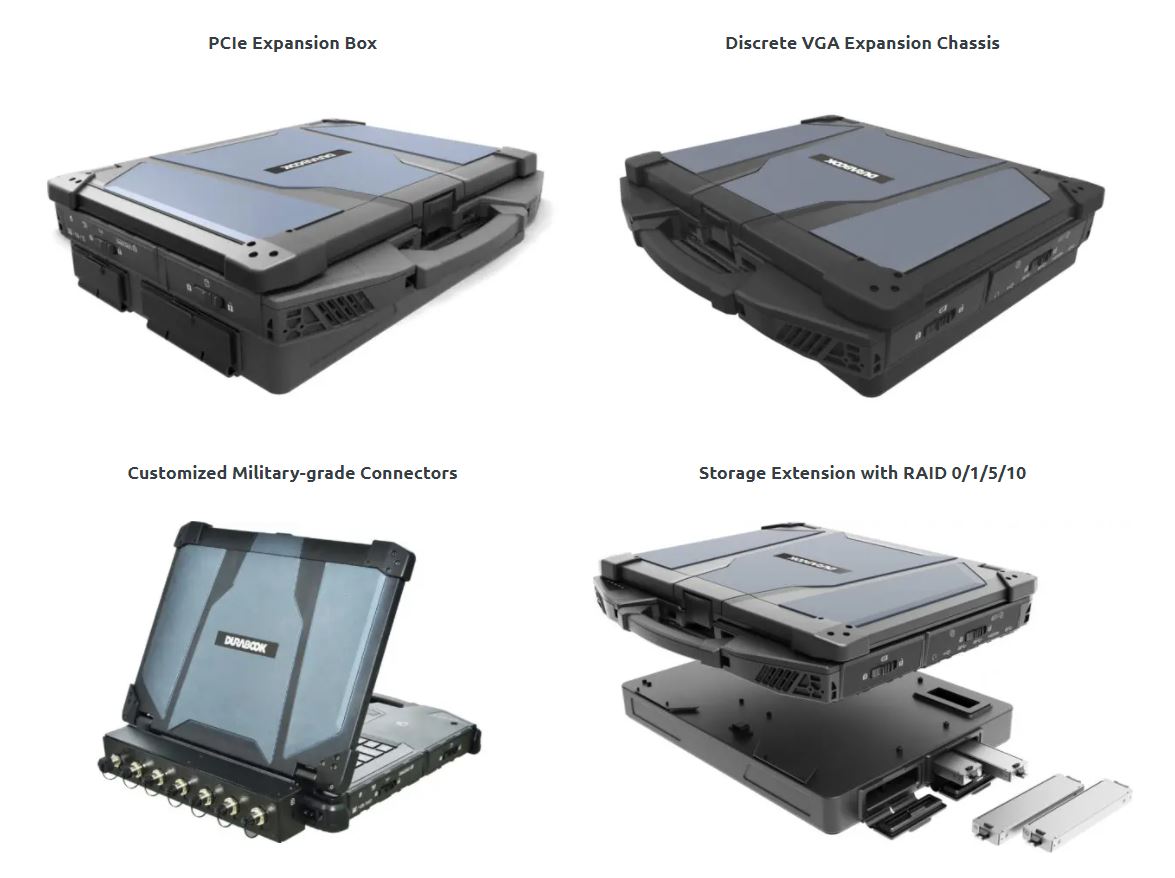

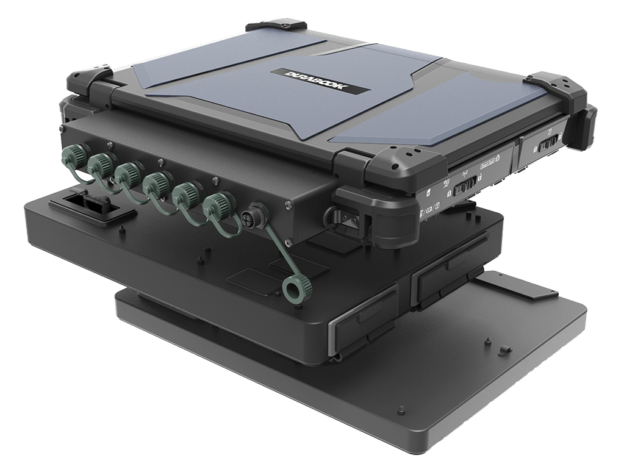

Expansion Box

• Optional PCI-Express 3.0 (2 slots)1,6
• Optional discrete VGA1,6
• Optional storage extension with RAID 0/1/5/101,6
• Optional military-grade connectors1

I/O Ports

• Thunderbolt 4 (type C) x 1
• USB 3.2 Gen2 (type C) x 1 (support DP)
• USB 3.2 Gen2 (type A) x 1
• USB 3.2 Gen1 (type A) x 1
• USB 2.0 (type A) x 1
• Audio in/out (combo jack) x 1
• microSD card (microSDXC) x 1
• 10/100/1000 Ethernet (RJ45) x 2
• VGA port (D-sub,15-pin) x 1
• HDMI port (type A) x 1
• Serial port (RS232 : D-sub,9-pin) x 25
• Docking connector (41-pin Pogo) x 1
• SIM card x 1
• Smart card reader x 1
• DC-In jack x 1
• ExpressCard 54 x 1 (default) or PCMCIA Type II x 1
• Optional RF antenna pass-through for GPS, WWAN, and WLAN

Keyboard & Pointing Device

• 2 user-definable keys (P1/P2)
• RF signal slide-switch
• Standard membrane keyboard with LED backlight

Communications

• Integrated 10/100/1000 Ethernet
• Intel® Wi-Fi 6 AX201 (802.11 ax)
• Bluetooth® V5.2
• Optional dedicated GPS module (UBLOX-NEO-M8N)
• Optional 4G LTE multi-carrier mobile broadband
• Optional RF antenna pass-through for GPS, WWAN, and WLAN

Security

• Intel® vPro™ Technology (per CPU options)
• TPM 2.0
• NIST BIOS compliant
• Easy removable SSD
• Smart card reader
• Stealth mode
• Night vision mode
• Kensington lock
• Optional Windows Hello1
• Optional fingerprint scanner
• Optional HF/LF RFID reader1

Power

• AC adapter : 100-240V, 50Hz-60Hz, 90W
• Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
• Main battery Li-Ion, 10.8V, 7800mAh, 16 hours2
• Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2
• Optional bridge battery : 5 minutes swap time3

Dimension & Weight

• 356 mm (L) x 280 mm (W) x 50 mm (H)4
• 3.6 kg4

Warranty

• 3-year limited warranty standard
