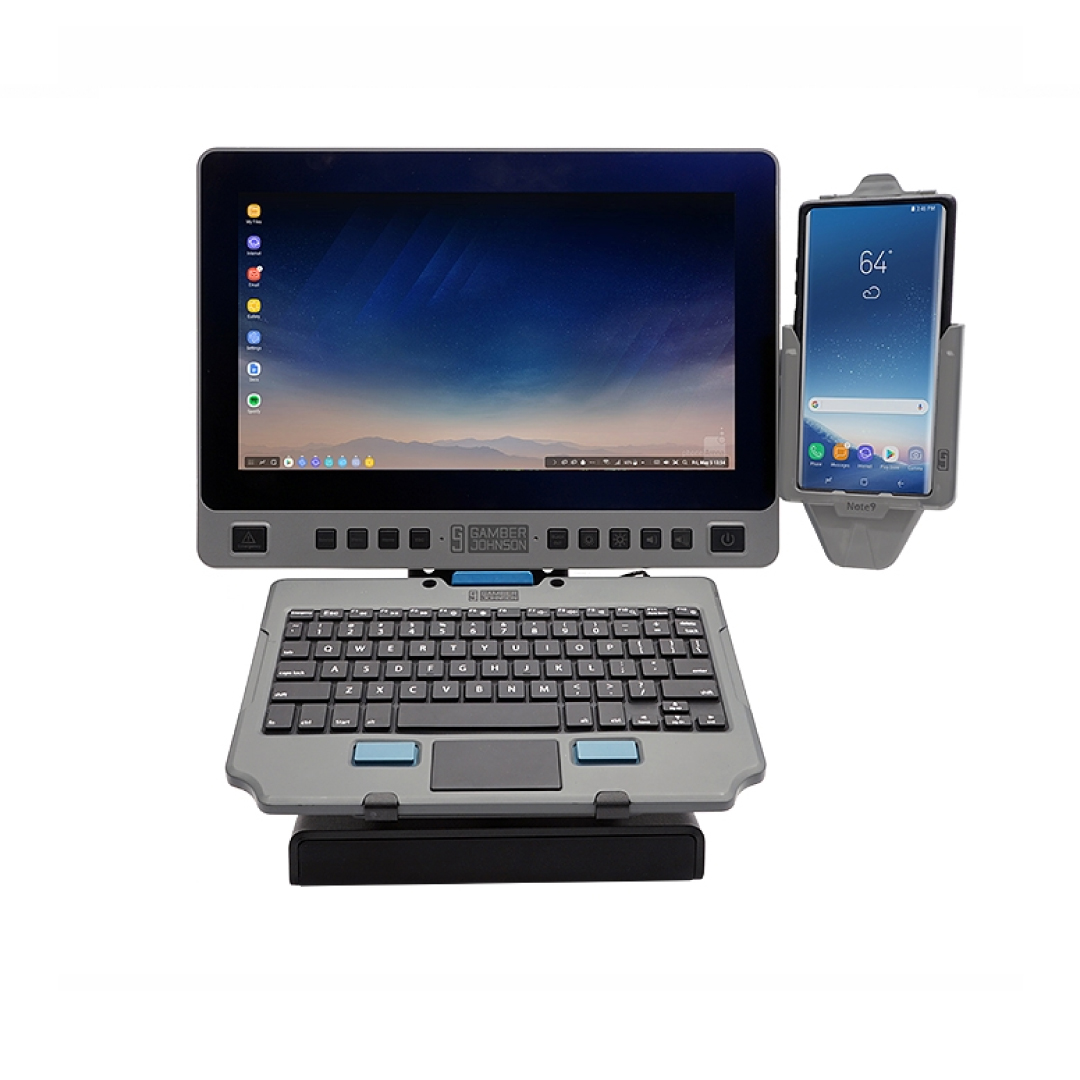

  • Samsung DeX Heads Up Vehicle Kit

    1896.00 1554.10 km-ta

    Tootekood: 7170-0757-00 Kategooriad: , Silt:

    Kirjeldus

    The Heads Up DeX Vehicle Kit includes Gamber-Johnson’s 13.3″ Capacitive Touch Screen display, Rugged USB Hub, Rugged Lite Keyboard and Quick Release Keyboard Cradle, and smartphone dock mounting bracket; just add the appropriate Heads Up smartphone docking station to match your Samsung smartphone to complete your ergonomic DeX vehicle solution. Easily transition from office to vehicle with access to all your DeX optimized applications.  Gamber-Johnson’s Heads Up DeX solution positions the smartphone in the driver’s view – use the phone as a second screen or a touchpad device.

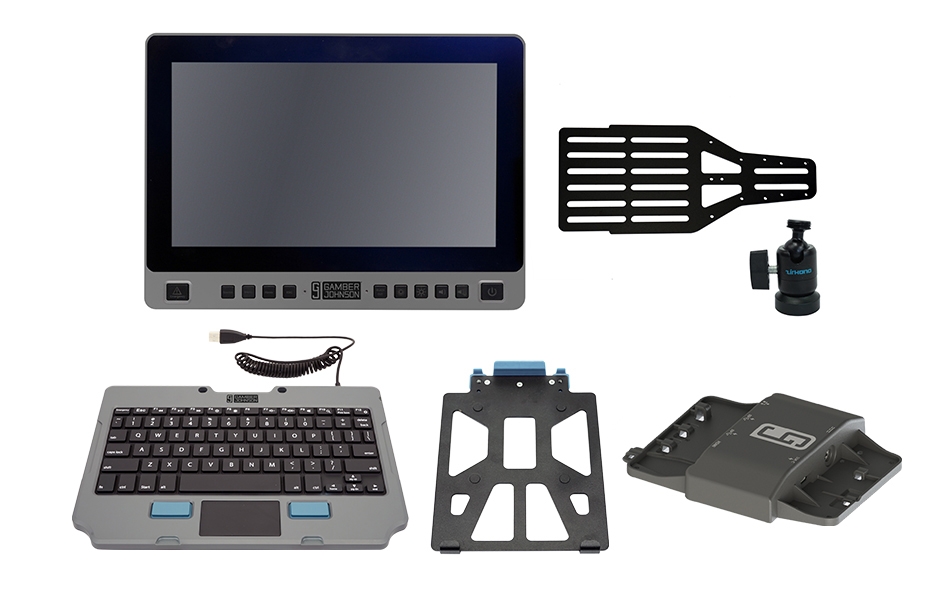

    Kit Includes

    • 13.3″ Touchscreen Display – includes power cable, HDMI cable, USB Type B cable (7160-1451-00)
    • Rugged USB Hub – includes USB-C cable (7160-1393-00)
    • Rugged Lite Keyboard (7160-1449-00)
    • Quick Release Keyboard Cradle (7160-1470-00)
    • Smartphone Dock Heads Up Articulating Mount (7110-1237)
    • Smartphone Dock Heads Up Mount Bracket (18540)
    • Installation Guides
    • Mounting Hardware

    Port Replicator

    • 13.3″ Touchscreen Display (7160-1451-00)
      • (1) HDMI
      • (1) VGA
      • (1) USB type C (2A @ 5V) fast charging
      • (1) USB type B (for Touch Control)
      • (2) USB 3.0 (fast charging 1.5A)
      • (1) Aux. out 3.5 mm
      • (1) DC input (Barrel Jack)
    • Rugged USB Hub (7160-1393-00)
      • (4) USB 3.0 (2) fast charging 1.5A
      • (1) Ethernet RJ45 (Gigabit)
      • (1) HDMI
      • (1) USB-C (5V@2A) fast charging
      • (1) Power port
    • Rugged Lite Keyboard (7160-1449-00)
      • (1) USB Type A

    Power Supply Included

    • No

    Features

    • Add a compatible Heads Up Smartphone Docking Station (7160-1394-00 Note9), (7160-1394-01 S9+), (7160-1394-02 S9), (7160-1394-03 S10+), (7160-1394-04 S10), (7160-1394-05 Note10), (7160-1394-06 Note10+), (7160-1394-07 S10e) to complete your DeX vehicle solution. Must order separately.
    • Smartphone requires a Rebel phone case to be compatible with the smartphone docking station; (18551-00 Note9), (18551-01 S9+), (18551-02 S9), (18551-03 S10+), (18551-04 S10), (18551-05 Note10), (18551-06 Note10+) and (18551-07 S10e). Must order separately.

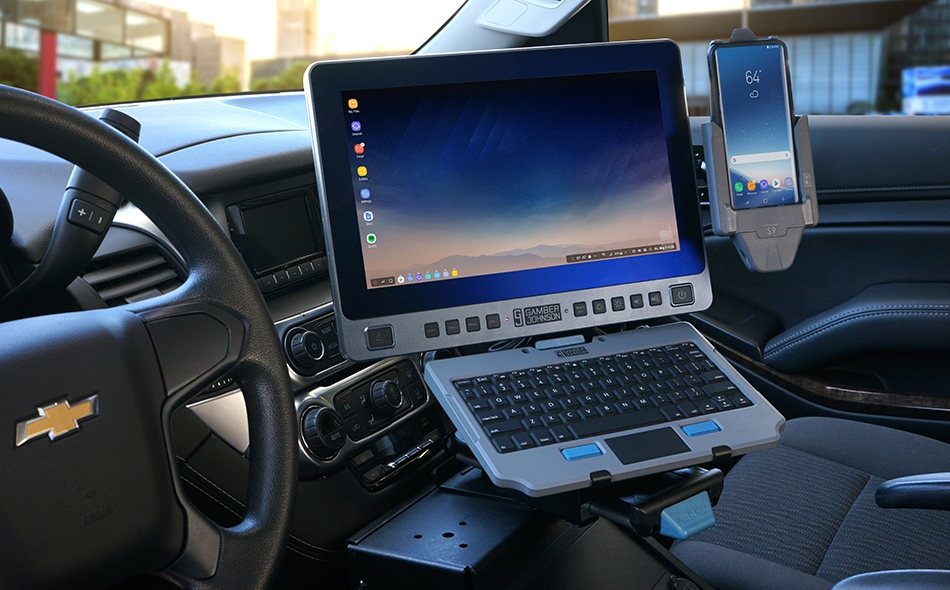

    • This DeX Heads Up vehicle solution positions the smartphone dock next to the touchscreen where you can use your phone as a secondary screen or a touchpad device
    • Mount the 13.3″ touchscreen to a Gamber-Johnson close-to-dash mount (7160-1346 or 7160-0822) or tablet display mount (7160-0529 or 7160-0494) for optimal viewing
    • 13.3″ 5-point capacitive touchscreen, high resolution 1920 x 1080, Brightness: 50-1000 nits (adjustable)
    • The Rugged USB Hub provides port replication to connect all peripherals; conceal under the instrument panel, or console box or mounted to the heads up mounting bracket
    • Quick release keyboard cradle; remove keyboard to a different work surface and return to the keyboard mount when complete
    • Gamber-Johnson offers several DeX solutions including:
      • The DeX Armrest vehicle solution that positions the smartphone dock in the vehicle armrest next to the driver where it is out of the way but still accessible
      • The DeX Desktop solution that enable the mobile worker to transition from vehicle to desktop seamlessly
      • Contact Gamber-Johnson for more information about their DeX solution kits and DeX components and accessories

    Certificates & Testing

    • MIL-STD 810G Shock and Vibration Specifications
    • MIL-STD 810G Temperature and Humidity (operational and storage)
    • SAE J1455 30mph Crash Testing
    • Cycle Testing: Keyboard – 2 Million Actuation

    Compliance

    • FCC, CE, RoHS, REACH

    Warranty
