Zirkona Height-Adjustable Suction Cup Desktop Mount

Kirjeldus

Maximum Weight Capacity

• Vibration environment – joiner holds up to 3 lbs. (1.4kg)
• Static environment – joiner holds up to 22 lbs (10kg)

Note: Extension tube will lower the overall payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner. The small joiner should not be used for mounting TV screens.

Features

• A great temporary workstation mounting solution for a display or tablet
• Suction-cup base:
  • Diameter: 4.5″ / 11.4 cm
  • Takes only seconds to install or re-position
• 9.25″ (23.5 cm) height-adjustable pedestal; spans 9.25″ – 15.75″ (23.5 cm – 40.0 cm)

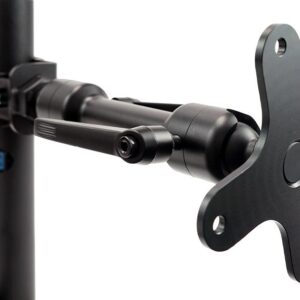

• Articulated joiner with tension handle to position display for the proper viewing angle
• Tension handle locks pedestal at the desired height
• VESA 75mm mounting adapter (fits most displays)
• Anodized aluminum with black finish

Kit Includes

• Suction Cup (7110-1232)
• Height-Adjustable Pole (7110-1230)
• Threaded Adapter (14145)
• Small Joiner (7110-1234)
• VESA 75 mm Device Plate (14139)

Warranty

• 1 Year Limited Warranty

Note: Recommend use of Loctite 9460, 9461, & 9466 on all M20 size threads (Loctite not included)
