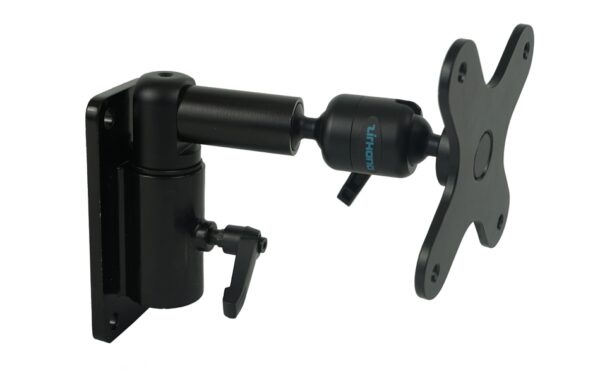

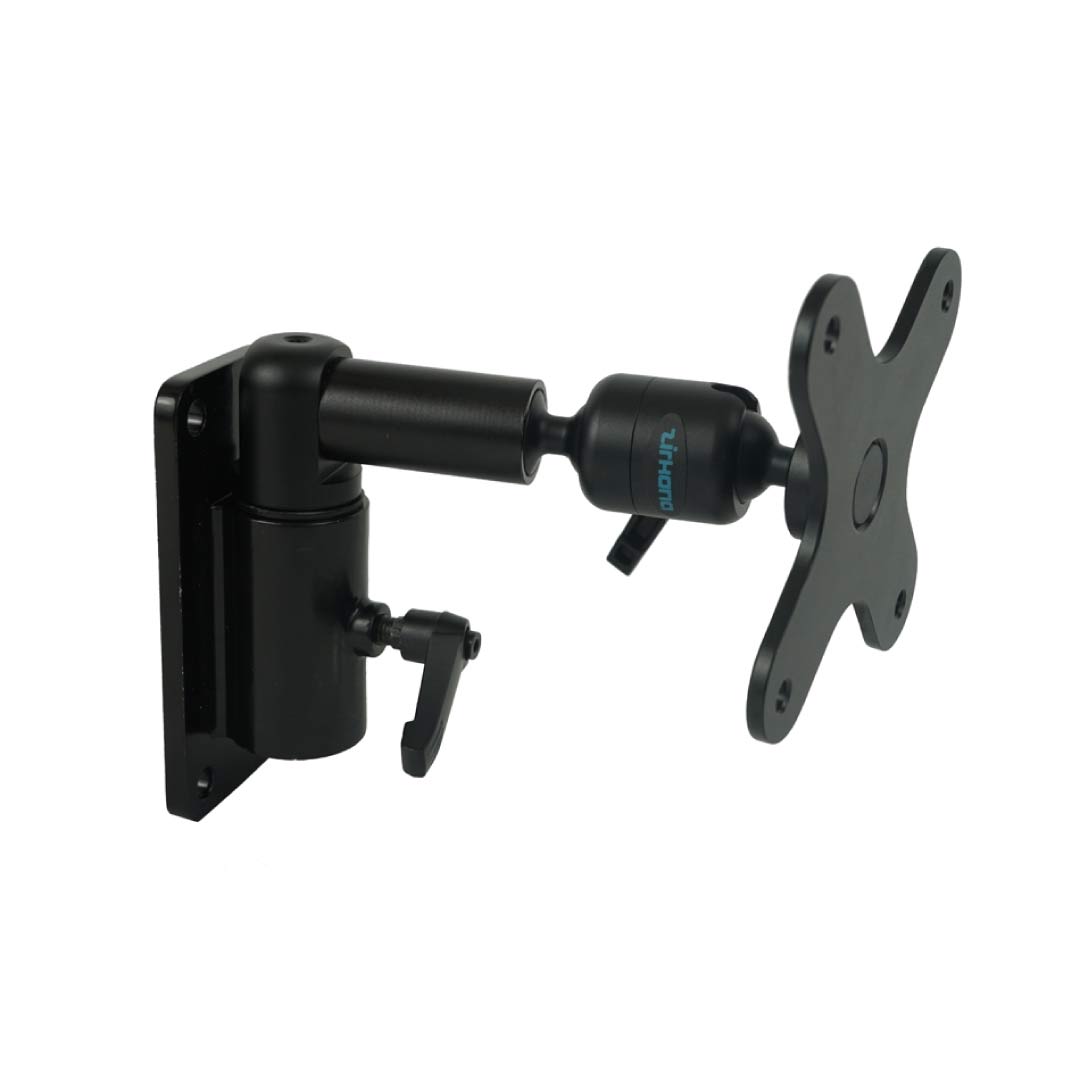

Zirkona Light-Duty Rotating Wall Mount Kit

Kirjeldus

Maximum weight capacity

• Vibration environment – holds up to 3 lbs. (1.4kg)
• Static environment – holds up to 22 lbs (10kg)

Note: Extension tube will lower the overal payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner. The small joiner should not be used for mounting TV screens.

Features

• Wall-mount solution for a small display, tablet, or handheld
• 4.25” x 1.87” (12.1 cm x 4.7 cm) mounting plate with 1.37″ x 3.74″ (3.5 cm x 9.5 cm)  hole pattern
• 2″ (50mm) extension screws into the 7110-1225 pivot pin with a 14145 threaded adapter creating a strong connection and strong solution
• Articulated joiner with tension handle – position display to the proper angle and tighten handle
• VESA 75mm mounting adapter (fits most displays)
• Rugged, black anodized aluminum
• Add a 50mm, 100mm, or 150mm extension to increase the range of operation

Kit Includes

• Rotating Wall Mount (Item No. 7110-1227)
• Male Thread Adapter (Item No. 14145)
• 2″ (50mm) Extension (Item No. 14141)
• Small Joiner (Item No. 7110-1234)
• VESA 75mm Device Plate (Item No. 14139)
• Assembly required

Note

• Recommend use of Loctite® 9460, 9461, or 9466 on all M20 size threads (Loctite not included)
  • Loctite EA 9460
  • Loctite EA 9461
  • Loctite EA 9466
