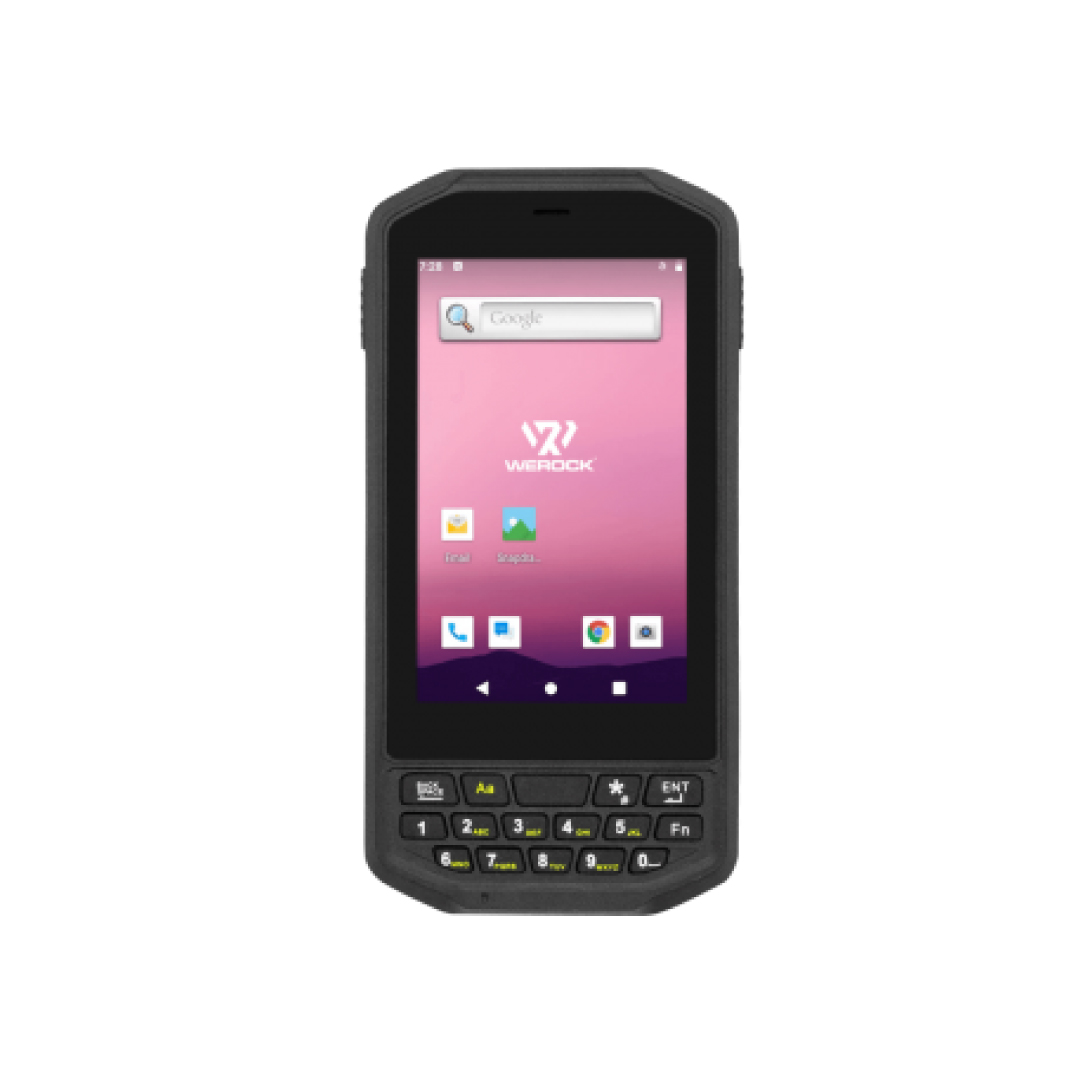

  • Käsiterminal SCORIA A104

    720 590 km-ta

    Käsiterminal Scoria A104 on rugged ehk karmidesse tingimustesse loodud mobiilne käsiterminal 2D skänneri ja Android operatsioonisüsteemiga.

    The Scoria A100 series mobile computer offers more – without costing more. It supports you on the sales floor, during inventories as well as during transport, logistics and production. Slim as a normal smartphone, it can also be used as such. With a comprehensive catalog of accessories, the device can be ideally adapted to different needs.

    Tootekood: A104-35L03X Kategooria: Silt:

    Kirjeldus

    OUTSTANDING FEATURES, BUILT FOR TOUGH EVERYDAY USE

    The Scoria A104 mobile computer is ready for immediate use. Since employees are usually familiar with Android, the learning curve is minimal. They can be used in any environment imaginable. Built to be waterproof and dustproof, they can withstand drops onto concrete as well as snow, rain, heat and cold. This ruggedness has also been certified to military standard MIL-STD-810G to ensure many years of investment protection.

    A barcode scanner is integrated directly into the housing of the industrial handheld for your daily entries and exits of warehouse and retail goods. This offers unparalleled code capture despite the compact housing. Specially developed for the most scan-intensive tasks, it scores with lightning-fast and reliable scans. Count on the high-performance, best-in-class data capture you need to increase worker productivity and efficiency thanks to industry-leading decoding algorithms and advanced focusing, optics and illumination systems. The integrated “Aiming LED” and optically clear scan field provide additional visual support for efficient scanning. The integrated 13-megapixel camera also enables the capture of images and documents, as well as evidence of repairs/maintenance performed, damaged products/packaging, and current asset conditions.

    LIKE A SMARTPHONE, BUT BETTER

    Scoria A104 is not only ideal as a mobile computer, the two devices also cut a fine figure as a phone, scoring points with excellent voice quality and functionality. VoLTE, for example, offers first-class voice quality in mobile networks, while VoWiFi provides outstanding voice quality over the WLAN network when reception is poor in a warehouse, for example. Integrated Assisted GPS with OTDOA enables fast navigation and positioning, ideal for use on the move.

    Scoria A104 offers a bright and high-contrast 4-inch touchscreen display, has multi-touch capabilities and is easy to read both indoors and outdoors in direct sunlight. With a depth of 16 mm, the devices fit in any pocket and at 220 grams are insignificantly heavier than standard smartphones. For convenient data entry, the A104 has 16 additional physical keys, in addition to the side scan keys and touch controls. In addition, there is a contactless NFC smart reader on the back of the A104 for much easier reading of card data and communication with other devices. Use this feature for retail loyalty cards, personnel verification, or micro-payment transactions.

    POWER AS MUCH AND AS LONG AS YOU NEED

    The Scoria A104 also rivals normal smartphones in performance and connectivity. The integrated Qualcomm® Snapdragon™ 625 mobile platform delivers a premium combination of advanced features, leading performance, robust connectivity and all-day battery life. Eight cores with dynamic clock speeds up to 2 GHz and 4 GB of internal memory run the most demanding applications. Together, they ensure that the device does not reach its performance limits. The modern Android 9 operating system, which has so far only been found on a few industrial devices, also offers intelligent battery management, multitasking and more performance. With an integrated Qualcomm® Snapdragon™ X9 LTE modem and PC-class Qualcomm® Adreno™ 506 graphics, the Snapdragon 625 delivers fast connectivity and powerful, efficient performance. For comprehensive wireless connectivity, Scoria A100 series devices communicate via Wi-Fi with AC standard for prompt access to download and upload connections, USB-C for fast data exchange, Bluetooth® 4.1 BLE and NFC for best connectivity with BT and NFC devices respectively.

    The internal battery is one of the largest in this device class and is more than sufficient for a typical 8-hour workday. An additional Snapon battery is available for longer use, which doubles the runtime of the Scoria series. The devices can be charged with increased speed thanks to QuickCharge 3.0 via USB-C or via optionally available single or multi-docking stations.

    IVANTI WAVELINK DEVICE VALIDATION

    The Soria A100 series has also received Ivanti Wavelink certification, allowing the comprehensive Ivanti Velocity solution to be used on both devices. Ivanti Velocity provides terminal emulation (TE) for connections to host systems with 5250, 3270, VT and HP emulations, as well as an industrial browser for modern applications with web server-based applications. Velocity is an SAP S/4HANA-certified solution and offers multi-vendor support for connecting mobile devices to enterprise systems. The software further enables optimization and automation in work processes.

    HIGHLIGHTS

    • Compact Android mobile computer for field and office use
    • Designed for enterprise use
    • Perfect size – lightweight and compact
    • Lightweight, effortlessly portable and easy to use with one hand
    • Powerful Qualcomm Snapdragon 625 processor
    • Integrated high-end 1D/2D barcode scanner with Aiming LED
    • High-resolution 13MP camera on the rear panel
    • Up to 12 hours battery life, expandable with SnapOn battery
    • Keypad for convenient data entry
    • Dust and waterproof to IP65
    • Ruggedly built, MIL-STD-810G certified
    • Extended operating temperature range
    • High-speed LTE for mobile voice and data communications
    • Comprehensive wireless connectivity with 802.11ac Wave 2 WLAN, Bluetooth & NFC
    • Assisted GPS for fast navigation and positioning
    • Modern Android 9 operating system
    • 4 GB RAM
    • 64 GB internal memory, expandable up to 192 GB
    • Quickcharge 3.0 fast charging capability via USB C
    • Excellent voice quality with VoLTE
    • Extensive accessories available such as scanner handle, UHF scanner, docking station, etc.
    • Climate-neutral product: All greenhouse gas emissions from production and transport offset

    TECHNICAL SPECIFICATIONS

    Physical characteristics

    • Dimensions148 x 74 x 16 mm
    • Weight220 grams
    • Housing Black
    • Battery Built-in lithium-ion polymer battery 3.85V / 4,000 mAh (15.4 Wh), up to 12hrs. Runtime depending on usage, Double runtime with optional Snapon battery
    • Input voltage100 – 240 V AC 50/60 Hz, DC Output: 5V/2A
    • Buttons Power, 2 x volume keys, 2 x scan key
      A104 additional: 16 keys (0-9/ABC, Backspace, Shift, Scan key, */#, Enter, Function key)
    • Status indicators Charge LED
    • Operating temperature -10° C – 50° C
    • Storage temperature -30° C – +70° C
    • Air humidity 95%, non-condensing
    • Sealing IP65 dust and waterproof
    • Drop resistance 1.2 m according to MIL-STD-810G

    System features

    • Operating system Android 9 AOSP
    • Processor options Qualcomm Snapdragon 625 Octa-Core max. 2.0 GHz
    • System memory 64 GB eMMC SSD
    • Working memory 4 GB
    • Display 4″ IPS display, 400×800 IPS resolution, 400 cd/m2 brightness
    • Touchscreen Robust capacitive multi-touch screen (10 touch points); Corning Gorilla Glass 3
    • I/O 1 x USB C, 1 x 3.5mm headset port, 1 x DC charging port, 1 x Pogo connector for expansion
    • SIM card slot Nano SIM
    • Expansion Micro SD card up to 128GB (SDXC, SDHC)

    Wireless communication

    • WLAN Dual Band  802.11ac Wave 2, 802.11a/b/g, 802.11n
    • WWAN X9 LTE 4G+ (up to 300 Mbps download and 150 Mbps upload); WCDMA (DB-DC-HSDPA, DC-HSUPA), TD-SCDMA, CDMA 1x, EV-DO, GSM/EDGE, Qualcomm® Snapdragon™ All Mode, LTE TDD, LTE FDD, LTE Broadcast, VoLTE, VoWiFi
    • Bluetooth Bluetooth 4.1 BLE

    Multimedia

    • Audio 1 x waterproof speaker, 1 x microphone, 1 x headset jack
    • Camera13 MP (rear) with LED flash

    Data collection

    • NFC ISO/IEC 14443 Types A and B, ISO/IEC 15693, ISO/IEC 18092, Mifare Protocol
    • Barcodescanner * High-end area imager with Aiming LED for scan-intensive applications; Supports all common 1D and 2D barcodes; Sensor resolution 1280×800 pixels, Scan from an angle of up to 60°, Reading distance 20 – 80 cm depending on barcode type
      • Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation
      • 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
      • 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible(Han Xin) Code,
      • Postal: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet

    Further specifications

    • Security features AES accelerator, Fingerprint sensor*; Haven security platform, Content protection, Device lock authentication, Processor security
    • Position detection GPS, GLONASS, Assisted GPS, OTDOA (LTE-based positioning); Advanced Location Features: Sensor-assisted navigation, Low-power geofencing and tracking, Pedestrian navigation
    • Sensors Proximity sensor, Brightness sensor, Compass, Gravity sensor, Tilt sensor
    • Accessories includedPower supply unit, USB-C cable
    • Optional accessories See accessories catalogue
    • Warranty 1 year warranty, extended warranty available
